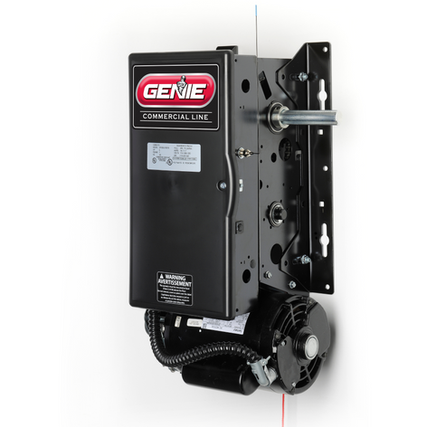

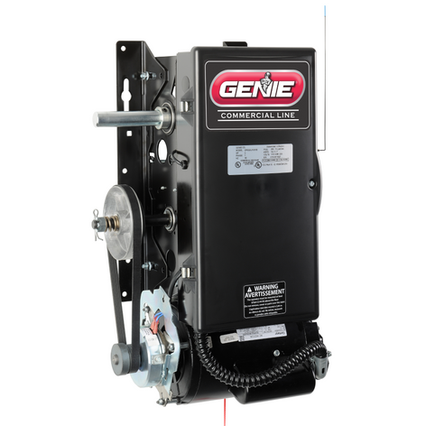

GCL-J EGRESS
STANDURD-DUTY JACKSHAFT
The GCL-J Egress operator is designed for applications where access-controlled egress opening is required for emergency response ingress or exit. Advanced features and options provide considerable flexibility meeting job specific configuration needs. The GCL-J Egress operator works with emergency egress grilles having 30-cycle per hour or less duty requirement. Maximum door height: 24 feet.
Advantages
MultiVolt® - Order phase specific operator for the job and have the ability to select the right voltage on the job site.
Single Phase: 115/208/230 VAC
Three Phase: 208/230/460 VAC
Three Phase: 575 VAC available separately
16-character LCD display with intuitive setup menu. Provides current status and troubleshooting assistance.
Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display, each with their own randomly assigned transmitter ID numbers.
TensiBelt® primary drive reduction eliminates need to adjust belt tension.
EZ Limit® provides for push to set limits that stay synchronized with door through long-term loss of power.
Open/close/stop and setup keys included on control board.
Modular design with optional boards for advance timer to close and auxiliary output functionality.
Standard Features
Limits are maintained after emergency egress grille operation. Upon restoration of power and/or rest of the egress activation device, the grille may be motor operated normally.
Governor limits grille speed during egress operation.
Release clutch disconnects operator drive train allowing grille travel to fully open position upon receipt of alarm signal, emergency egress push-button operation, or power loss.
Continuous-duty AC motor with overload protection. Motor replaceable without changing limits. Thermally protected.
EZ Limit® electro-mechanical limits.
Adjustable friction clutch.
Pull cord release for emergency manual operation.
Maximum run timer automatically adjusts to up and down run time.
TensiBelt® primary reduction. Chain and sprocket secondary reduction.
Precision radial ball bearings in critical areas.
24 VDC disc brake with progressive braking.
2-year/20,000-cycle limited warranty.
Delay on reverse.
UL 325 Listed.
3-button control station.
Programmable mid-stop.
